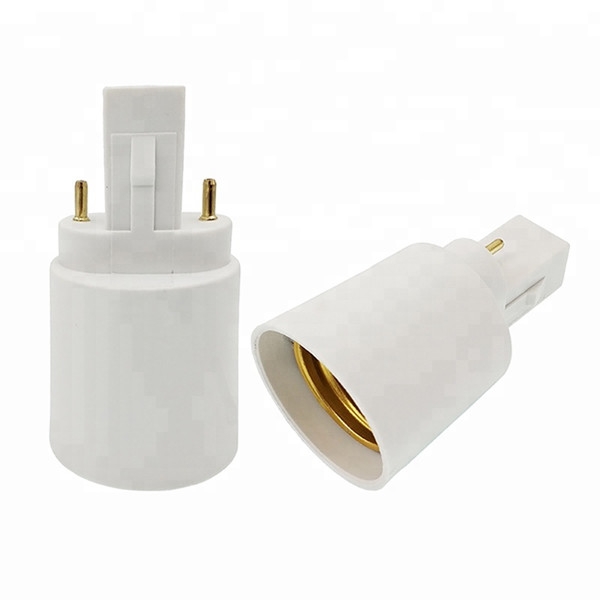

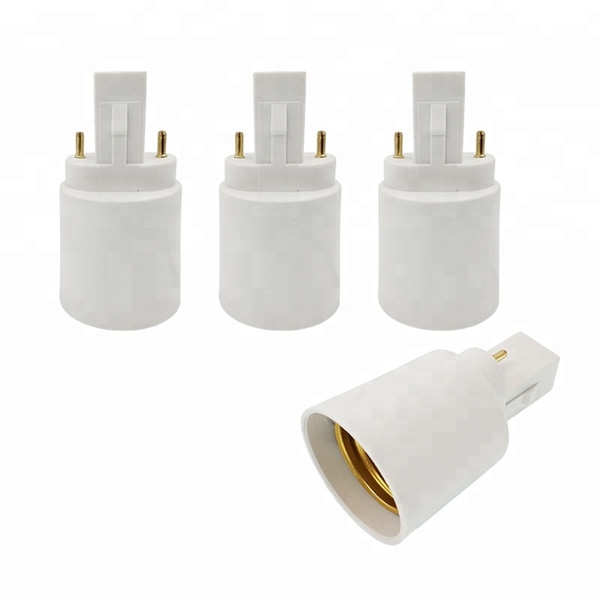

Product Feature of G23 to E26 E27 Adapter 2 Pin CFL Light Socket Lamp base Converter

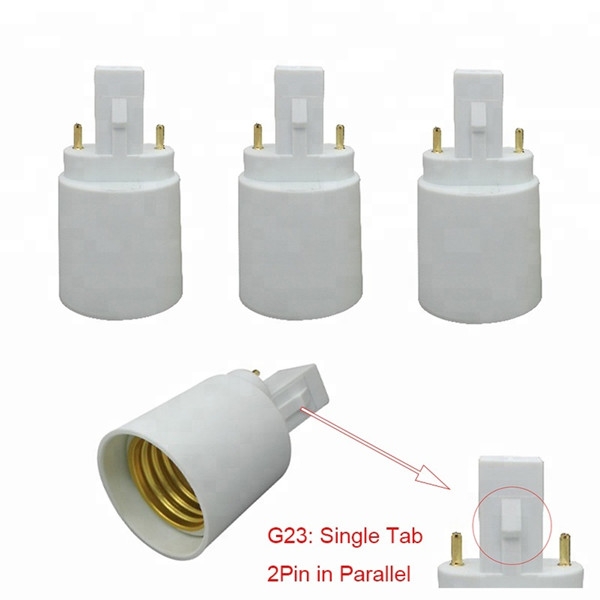

1. Suit for G23, G23-2, 2pin socket. 2p is in parallel, not in cross(that is G24 2P in Cross)
2. G23 Single Tab, NOT GX23 Which is double Tab
3. Work for 2-Pin CFL with
G23 Base: 5W,7W,9W & 11w Single Tube;
G23-2 Base:5w,7w,9w 11w Quad Tube
IMPORTANT
Most LED Lamp in the market can work with inductance ballast, but can not work with the electronic ballast. So please make sure to bypass the electronic ballast.
Need Bypass the ballast, PL-C down light fixture has ballast inside. Bypass the ballast before install the LED light, otherwise the ballast will make resonance high voltage which destroy the light, and cause result like burnt, smell, hot, flicking etc.

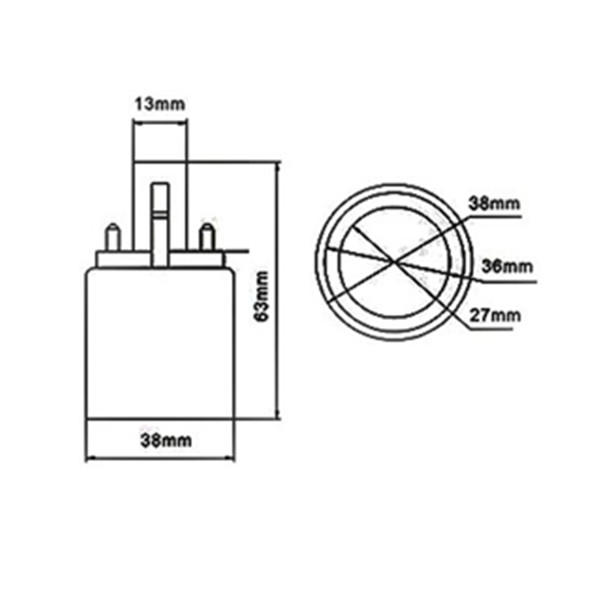

Product Specification of G23 to E26 E27 Adapter 2 Pin CFL Light Socket Lamp base Converter
Product Specification of G23 to E26 E27 Adapter 2 Pin CFL Light Socket Lamp base Converter
| Name |
G23 to E26 E27 Adapter 2 Pin CFL Light Socket Lamp base Converter |
| Voltage |
250V 2A |
| Material |
PBT Anti-Flame, Copper Contact |
| Certificate |
CE ROHS |
| Application |
Install E26/E27 bulb into G23 Socket |
| For G23 Base |
5W,7W,9W & 11w Single Tube |
| For G23-2 Base |
G23-2: 5w,7w,9w 11w Quad Tube |
| Installation |
Need Bypass the electronic |
How to bypass ballast?
1. Off the Power.
2. Find the Ballast. Usually it is embedded inside the ceiling fixture. Pls pull off the existing PL lamp, reflector. Leave wire in junction box.
3. Normally, the Ballast has a black and white wire on the AC input side, and two red and two blue output wires. To bypass the ballast, cut all the Input and output wires, 6 wires total.
4.Then connect the two red wires to the black wire.
5. Next, connect the two blue wires to the white wire. now ballast is bypassed.

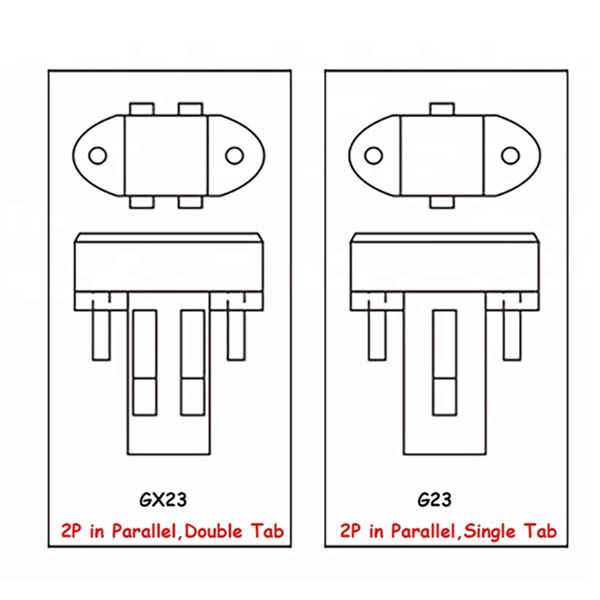

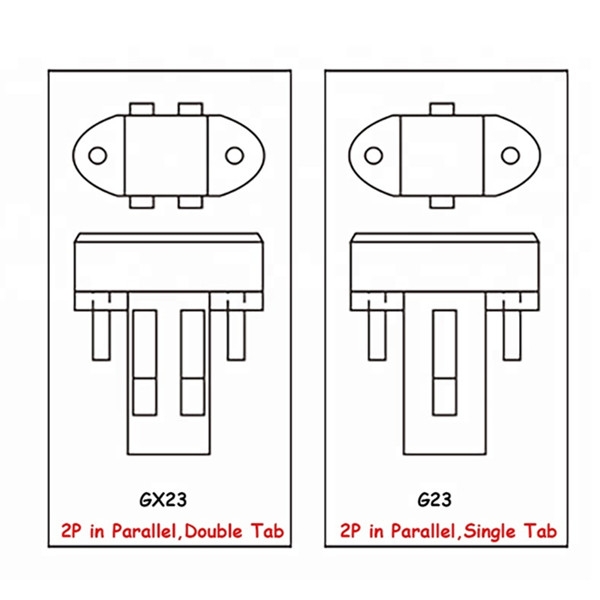

Base Difference
Please distinguish socket type.
