LED Lamp Aluminum Housing PLC G24 LED Blub 9W Light Tube

 LED Lamp Aluminum Housing PLC G24 LED Blub 9W Light Tube

1. Place origin: Guangdong, China
2. Material: Aluminum
3. Base: E27 G23 G24 G24D
4. PF: <0.5
5.Power: 9W
6. Lumen efficiency: 100lm/w
7. CCT: WW NW CW for choose
8. Warranty: 3 years

    LED Lamp Aluminum Housing PLC G24 LED Blub 9W Light Tube

    Product advantages of LED Lamp Aluminum Housing PLC G24 LED Blub 9W Light Tube
    1、Independent development of long-life IC power supply. Set up multiple protective measures of lightning, surge, high temperature, high pressure and flow to ensure that the whole lamp life of 30000 hours at least.

    2、Good electromagnetic compatibility, no high frequency electromagnetic radiation, ultra low current harmonic content, excellent EMC characteristics, can be safely used in high precision equipment environment.

    3、Super wide working temperature range, can be normal and safe used in the environment of -45℃ to 55℃.

    4、The actual power only achieves about 70% of LED power, ensuring the maximum reduction of light failure.

    5、The LED adopts 12*35 large chip, pure gold wire and PCT support to ensure high brightness, fast heat dissipation, high temperature resistance and deathless lamp.

    6、High quality aluminum substrate, high pressure resistance ≥ 4000V. Heat-resistant PC cover, double insulation, increased security.

    7、6063-T aluminum radiator, fast heat conduction. Large area heat sinks are excellent for controlling light decay.

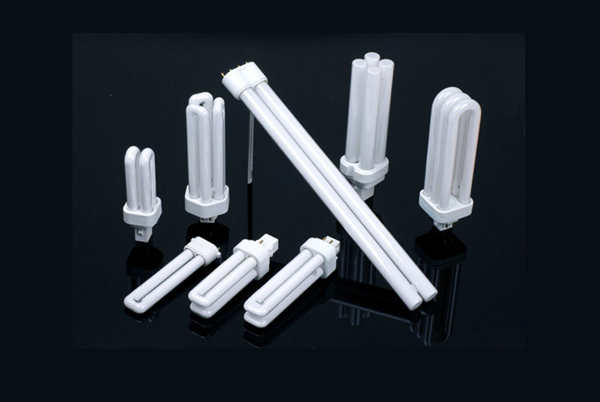

    8、It is the same size and lamp holder as the glass fluorescent lamp. PLS glass fluorescent tube can be replaced directly. [magnetic ballast]

    Product specification of LED Lamp Aluminum Housing PLC G24 LED Blub 9W Light Tube
    Model No. 5W ML-S05AL 7W ML-S07AL 9W ML-S09AL 11W ML-S11AL
    Lumen 400-600 600-800 800-1000 1000-1200
    Size 120*28mm 144*28mm 158*28mm 172*28mm
    Replace PLC-10W PLC-13W PLC-18W PLC-26W
    Voltage/Driver Accurate voltage85-135V195-265V260-300V
    Linear driver
    Lamp holder G24/G23/GX24
    Body material PC + Aluminum
    Cover Clear / Diffusion / WhiteningCustomized
    Radiator Aluminum alloy
    Color temp 1.3000K (Warm white)2.4000K (Nature white)3. 6000K (Cool white)4. Other
    CRI Ra≥82
    Power factor PF≥0.5 / PF≥0.9[10% Price of wide voltage increased by 10%]
    LED chips SMD28350.5W/PCS
    Working temp -45℃ - +55℃
    IP IP50
    Lifespan 30000H - 40000H
    Beam angle 160°(One-sided)
    160°*2 (Double-sided)

    Company Information

    Shenzhen (Huizhou) More Green Light Co., Ltd has been in lighting since 2011 in Guangdong China, joined trade show for years, focus on high quality and unique lighting. Products including Indoor Lighting, outdoor LED lighting, LED lighting accessories etc.

    FAQ of LED Lamp Aluminum Housing PLC G24 LED Blub 9W Light Tube

    Q1. Can I have a sample order?
    A: Yes, sample order for checking quality are welcome. Mixed samples are acceptable.
    Low MOQ, 2pc for sample checking is available, please contact us for sample shipping.

    Q2. What about the lead time?
    A: For sample, it takes about 3-5 work days, mass production time needs 1-2 weeks for order quantity more than 5000pcs.

    Q3. What payment methods do you support?
    A: T/T, Paypal, Western Union etc.

    Q4. How do you ship the goods and how long does it take to arrive?
    A: For small quantity, usually ship by DHL, UPS, FedEx, TNT as client required.

    For mass order, weight more than 45kgs, we can also provide LCL, FCL sea shipment, airport-to-airport cargo, but you need declare the custom at your side.

    All price quoted are based on EXW factory price

    Q5. Is it OK to print my logo on purchased product?
    A: Yes. Labeling is available. Please contact us for different product and its MOQ for labeling and your label design.

    Q6: Do you offer guarantee for the products?
    A: Yes, 2-5 years warranty are offered according to different products.

    Q7: What is your company main products?
    A: More Green Light major product is indoor lighting (LED plug light, GX53, R7S, AR111,2G11 Tube, 2G7 LED plug light), RGB LED Ring Light, outdoor lighting (LED Tri-proof linear light, LED pool light replacement) and lighting accessories (LED Lamp Base holder, Lighting testing equipment) etc.
